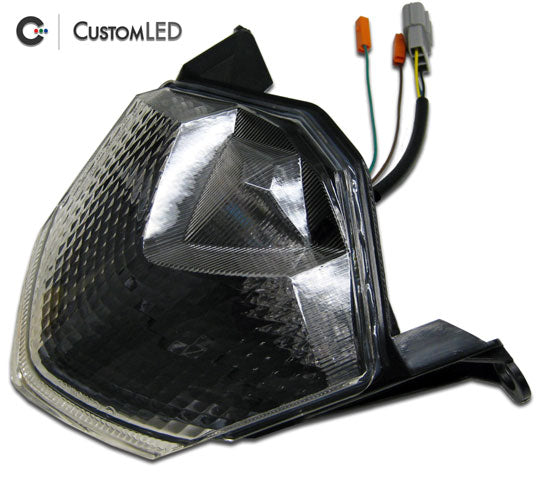

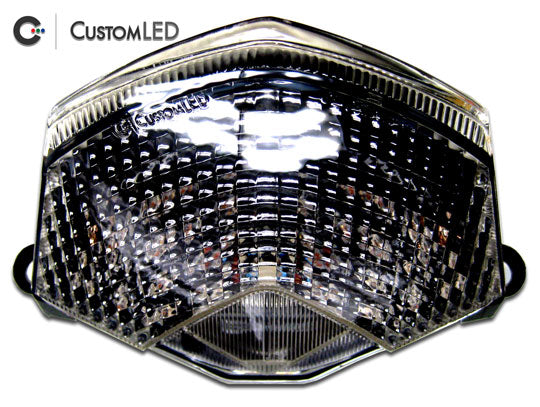

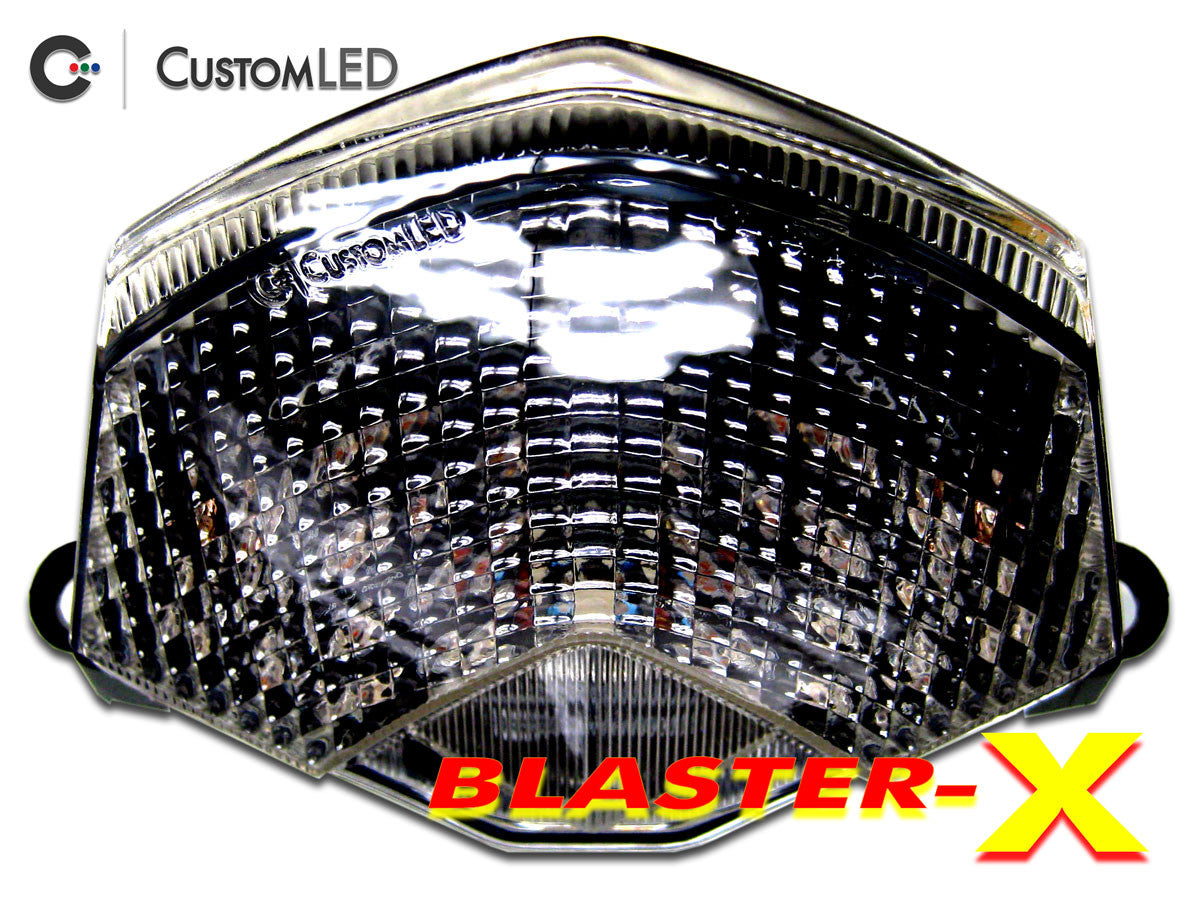

This is an ultra-high intensity, high-performance Integrated LED Tail Light for the 2008, 2009, 2010 Kawasaki ZX-10R.  This product is a high quality complete plug and play unit with clear lens and OEM connectors (want smoked lens?). This product directly replaces the OEM tail light without any physical modification necessary.  The lens quality is equivalent to the OEM unit it replaces.

The Custom LED 2008, 2009, 2010 Kawasaki ZX-10R Integrated LED Tail Light now features the latest version of our proprietary and patented Blaster-X technology with Brake Alert and Strobe Mode!  With this product, your turn signals are built right into the tail light!  It's the best fender eliminator money can buy.

Brake Alert automatically provides a few quick ultra-bright strobe pulses of light the instant the brakes are applied.  This alerts motorists the instant you apply the brakes - possibly saving seconds of reaction time for non alert motorists!  The number of pulses can be user-configured VIA our new Programming Interface!  It can also be disabled if desired.

Strobe Mode is a feature that puts the taillight into a devastating strobe cycle that is sure to get anyone's attention.  This mode produces insanely bright pulses of light at ultra high frequencies, in alternating patterns across the tail light.  Strobe mode is engaged by grounding a control wire, and can be engaged at any time.

Blaster-X is our proprietary pulse-width-modulation (PWM) technology that squeezes the maximum possible illumination power out of LEDs.  The result is a significantly less expensive, yet even more outstanding and effective product than it's predecessors - and widens our advantage over our competitors.

NEW! This product also marks the introduction of our NEW Programming Interface which allows users to easily customize features of the tail light!  The customizable features menu allows users to:

• Enable or Disable the Startup Sequence.
• Set the number of pulses in the Brake Alert feature (can set to zero to disable Brake Alert).
• Adjust the running light brightness within a preset range.
• Adjust the brake light brightness within a preset range.
• Engage Demo Mode, where the tail light cycles through all functions automatically and repeatedly!
• Reset factory defaults.

This programming interface is accessed very simply through the Strobe Mode control wire!  The interface is designed to receive input simply by providing ground pulses to the strobe mode control wire.  No special equipment is necessary to access and utilize the programming interface!  Detailed programming instructions will ship with every unit.

NEW! And last but not least, our Sure-Blink Technology.  Our Integrated Tail Lights are designed to follow the turn signal commands of the motorcycles flasher relay.  This insures it is compatible with all after market and OEM flasher relays - especially programmable relays such as our ELFR-P.  However, in the event that the tail light receives a command to turn that does not break (blink) within a preset time period, the tail light will automatically blink that side.  This feature is most useful in preventing common no-blink problems that are associated with retrofitting motorcycles to LEDs.  Also, in keeping with this effort, we have also built in our ever popular Stage I Load Equalizers into this tail light!

This high performance Integrated tail light utilizes 32 Ultra Bright Red LEDs and 32 Ultra Bright Yellow LEDs - compared to only 9 red LEDs on the stock circuit board!  These LEDs effectively handle the functions of: Running Light (red), Brake Light (red) and Turn Signals (amber) - all within the tail light housing!

Just as on the other Custom LED Integrated LED Tail Light models, the system is designed so that the red LEDs turn off (on the turn side) when the yellow LEDs come on, so that the turn indication is a pure and distinguishable yellow light.  The unit automatically flashes between the red and yellow on the side you're turning!  The Yellow LEDs are slightly offset as well, creating a dramatic attention grabbing effect.

The engineering is solid and dependable, the looks are unbeatable, and the brightness is incredible!  Don't waste your time with half hearted solutions, do it the right way from the start, with Custom LED.

If you would like to find out more information as to Custom LED's design concepts for the Integrated LED Tail Lights, and the purpose of them, read this introduction to Custom LED's Integrated LED Tail Lights.

Custom LED 2008, 2009, 2010 Kawasaki ZX-10R Tail Light Complete Unit Features:

• Plug-and-Play installation with OEM connectors (tail light AND turn signals).
• OEM Fit with high quality clear lens (want smoked lens?).
• 32 Ultra Bright Red LEDs for running and brake lights.
• 32 Ultra Bright Yellow LEDs for turn signals.
• Stealth black boards for inconspicuous appearance.
• Custom LED ColorChange Technology on-board.
• Custom LED Blaster-X PWM technology on-board.
• Custom LED Strobe Mode!
• Custom LED Brake Alert!
• New Programming Interface allows users to easily customize features!
• New Sure-Blink Technology
• Built-in Stage I Load Equalizers!
• Robust regulated design for consistent and reliable performance.
• 4 MHz microprocessor controlled operation.
• 24/7 customer support.
• 2-year Warranty & Satisfaction Guarantee!
• MADE IN THE USA!
• NOT DOT approved.

No videos are available yet for this particular model, however, if you check out the videos on our other Blaster-X product pages, you can get an idea for the outstanding performance of our products!

We need your help!  At Custom LED, although we would like to own every new motorcycle that comes to market, we can not afford it :-(

We need the help of 2008 - 2010 ZX-10R owners to get some quality product videos on our website!  We are going to start the Custom LED Video Challenge which will provide a free tail light to the individual or individuals that produce a video that we can use for marketing material.  The video must show all functions of the tail light in stationary and real world riding conditions.

Simply the tail light from CustomLED.com at full price (once available), and send us a video that we determine to meet our requirements and WE WILL REFUND THE ENTIRE PURCHASE PRICE!  That's right, a free tail light in exchange for a professionally produced VIDEO!

E-Mail us for more details

The Custom LED 2008, 2009, 2010 Kawasaki ZX-10R Blaster-X Integrated LED Tail Light Plug-And-Play Complete Unit was designed to function as a direct replacement for the OEM tail light.  The unit will install with exactly the same fit and electrical connectors as the OEM unit.  No cutting, splicing or modifications what so ever.

There may be additional accessories required to correct blinker problems on your motorcycle if you remove your OEM turn signals.  These accessories could not be built into the tail light, and are generally optional and specific to different customers needs, so they are sold separately. Please see the recommended accessories above, and read about the general issues and solutions in our Frequent Questions Page.  If you have any questions, please do not hesitate to contact us.

Installation of this product requires that you remove the OEM tail light from the motorcycle, and install this unit in its place.  Please consult a qualified technician or your repair manual for the proper procedure to remove the OEM tail light.

Once the OEM tail light is removed from the motorcycle, installation of the Custom LED 2008, 2009, 2010 Kawasaki ZX-10R Blaster-X Integrated LED Tail Light is detailed in the instructions below.
