Blinker Genie 2 - for Automobiles (pair)

  |
P/N: BGA_REV0

Custom LED

$29.99 $34.99

In Stock! Click Add to Cart to view available shipping methods and rates.

Share:
  • Allows for Run AND Turn operation of Single-Intensity lamps on Automobiles.
  • Works with LED or incandescent lamps.
  • Specifically designed for Automobiles that have switchable running light circuits.
  • High-Power capacity of 2A/ 25 Watts.
  • Comes as a complete kit with electrical connectors and detailed instructions.
  • High-speed solid state design is compatible with all flasher relay patterns.
  • Low on-state resistance means your indicators will be as bright as possible.
  • Manufacturer direct purchase.
  • 1-Year Warranty & Satisfaction Guarantee.
  • Made in the USA.
  • Sold as a PAIR.
  • Ships same business day.

Overview

The Blinker Genie for Motorcycles has been a huge success, but was not ideal for use on automobiles.  We have now designed this Blinker Genie specifically for Automobiles called the Blinker Genie 2.

The Blinker Genie 2 - for Automobiles - is designed to allow single filament light bulbs, and single intensity LED lamps, to function as both running lights AND blinkers - at full brightness!

Properly connect any two-wire incandescent or LED lamp(s) to the Custom LED Blinker Genie 2, and your lamps will now function as both running lights and turn signals!

Each Blinker Genie 2 controls up to 2A (25 Watts) worth of indicator lamps in the recommended configuration.  This ensures our product will work for a wide variety of situations and indicator lamp types.

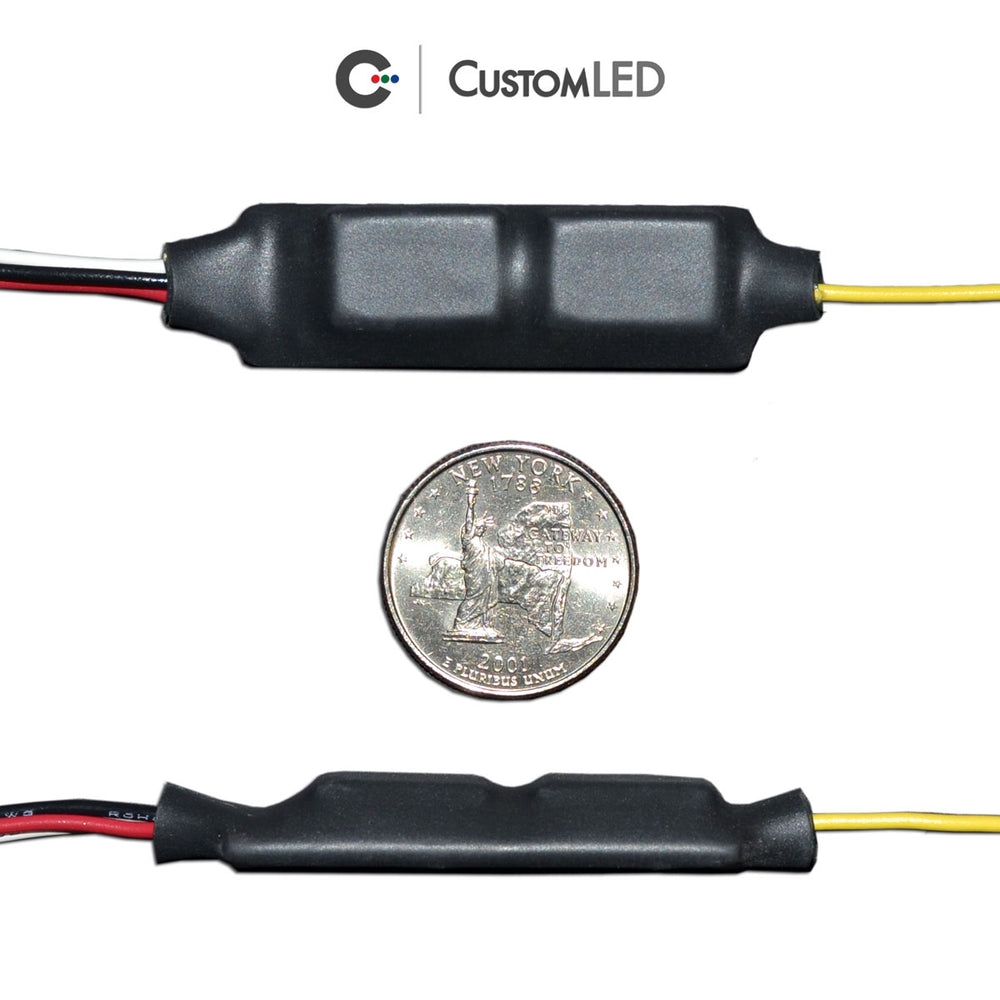

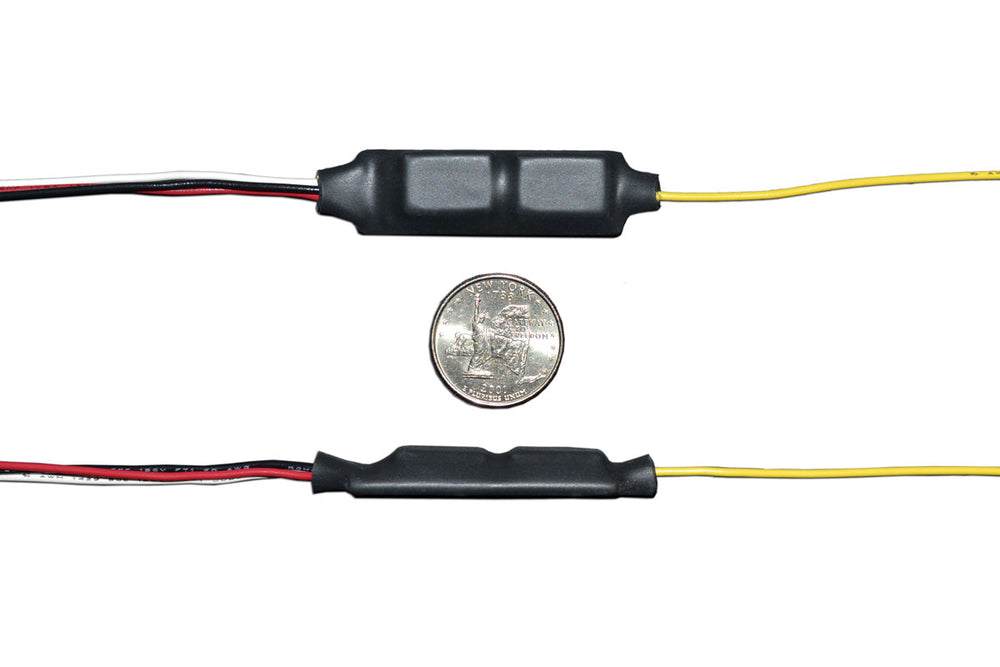

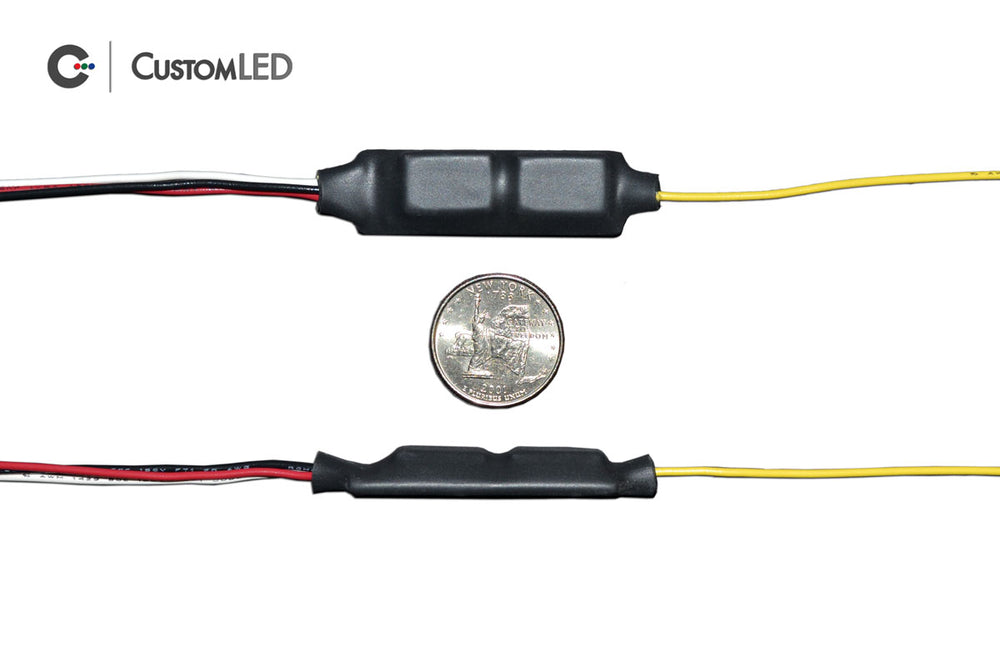

The Custom LED Blinker Genie 2 is designed to be as small as possible while being as versatile and robust as possible.  The finished dimensions of the unit will measure less than 0.7" x 2.5" X 0.25", and it is water resistant for reliable operation.

Operation:

  • Running Lights OFF: The Blinker Genie 2 will pass voltage from the turn signal input to blink the connected lamps on.  The lamps will remain off if the blinker is not engaged.
  • Running Lights ON: The Blinker Genie 2 will pass voltage from the running light input to power the lamps as running lights, and will blink the lamps off anytime there is voltage on the turn signal input.

This way, in any input scenario, the functions of run and turn are achieved.

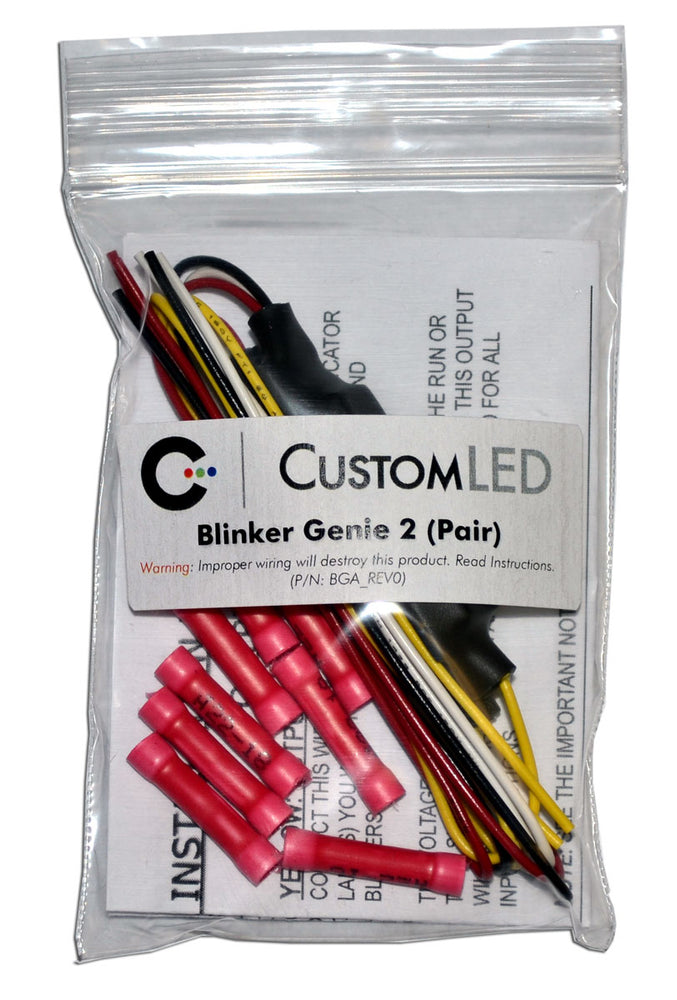

The Blinker Genie 2 has 7" wire leads, all required electrical connectors and detailed installation instructions.

Please read the important notes in the Installation Tab for other accessories that may be required to maintain proper function of the blinker system after installing the Blinker Genie.

Features

  • Allows for Run AND Turn operation of Single-Intensity blinker lamps on automobiles.
  • Works with LED or incandescent blinker lamps.
  • Specifically designed for Automobiles that have switchable running light circuits.
  • High-Power capacity of 2A/ 25 Watts.
  • Comes as a complete kit with electrical connectors and detailed instructions.
  • High-speed solid state design is compatible with all flasher relay patterns.
  • Low on-state resistance means your indicators will be as bright as possible.
  • Manufacturer direct purchase.
  • 1-Year Warranty & Satisfaction Guarantee.
  • Made in the USA.
  • Sold as a PAIR.
  • Ships same business day.

    Specifications

    • Maximum Recommended Indicator Load: 2A (25 Watts)
    • Internal Resistance: <0.18 OHMS
    • Maximum Switching Speed:  1Mhz
    • Switch type: Advanced Power Mosfet
    • ONLY functions with a Negative Common Ground System (most common)

      Video

      We have a large collection of all Custom LED product videos on the Custom LED YouTube Channel.

      The videos in this playlist below are a collection of user-submitted and original videos related to this product.

      Installation

      You will most likely experience the fast-blink rate if you use the Blinker Genie 2 on your automobile to control an OEM blinker lamp. It is important to note that the Blinker Genie 2 effectively removes the operated lamp(s) from the turn signal circuit when the running light circuit is on.  This is detected as a bulb burned out by most vehicles flasher relay, and a fast-blink rate results.

      Please consider replacing your flasher relay with a suitable Electronic LED Flasher Relay (preferred) or use an appropriate Load Equalizer instead (second method) to control blink speed issues.

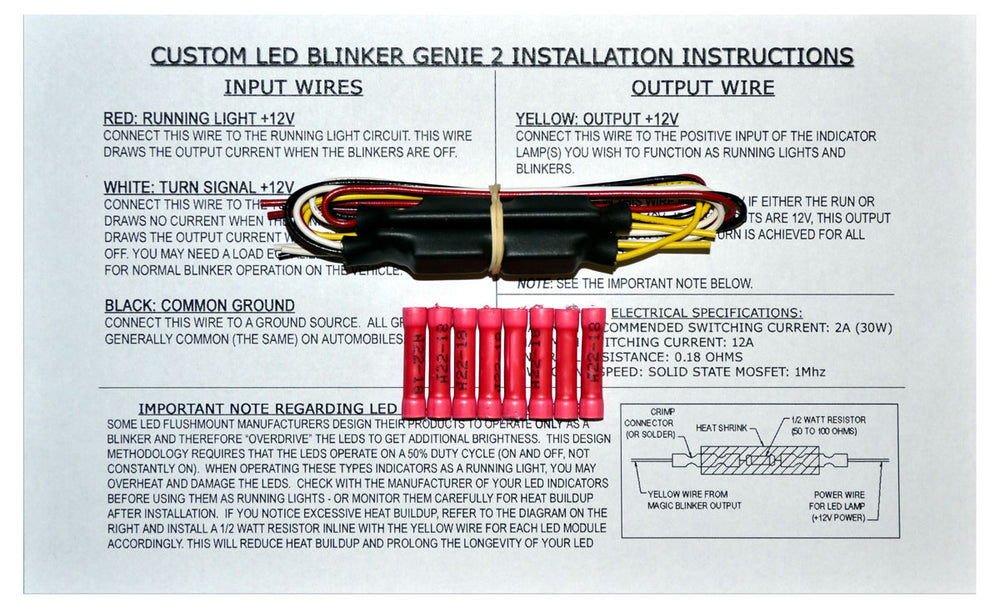

      Installation of the Blinker Genie 2 is represented in the illustration below.  Read the downloadable installation instructions below thoroughly for additional installation information.

      Custom LED Blinker Genie typical installation diagram



      Click to download installation instructions

      Click icon to download.
      Adobe Acrobat Reader is required to view this file.
      If you are having problems viewing the file, please download the free software here.

      MOTORCYCLE INSTALLATION NOTE:

      For motorcycles, the original Blinker Genie is recommended.
