2001-2002 Yamaha YZF-R6 Integrated LED Tail Light Retrofit Kit

  |
P/N: 0102R6_REV2

Custom LED

$50.00 $99.99

Sorry, this product is temporarily out of stock.

×
ELFR-1 Electronic LED Flasher Relay for Motorcycle LED Blinkers - OEM Connector SALE

ELFR-1 Electronic LED Flasher Relay with OEM Connector

$19.98 $24.99
Maintains OEM Blinker flash rate for a wide range of LED and non-LED blinkers. Plug and play connectivity with OEM connector for 2-wire AND 3-wire OEM Flasher Relay Connectors (see...
» View full product details
×
H4 LED Headlight Bulb - High Performance SALE

H4 LED Headlight Bulb - High Performance

$39.99 $79.99
High performance H4 (9003/HB2) LED high/low beam Headlight Bulb (single bulb) High-beam and Low-beam function supported with dual-LED chips Super-bright 1250/2000 Lumens per high/low beam (*real output, not peak) Optimized focal point ensures...
» View full product details
×
Yamaha OEM Turn Signal Connectors, 3-Wire

Yamaha OEM Turn Signal Connectors, 3-Wire (pair)

$6.99
Typically used for front and rear turn signal connectors on some Yamaha motorcycles. Fits multiple years/models - confirm individually. Comes with 8" long 22AWG wire installed. Protective sheathing prevents chafing....
» View full product details
×
Yamaha OEM Turn Signal Y-Splitter Connectors, 3-Wire (pair)

Yamaha OEM Turn Signal Y-Splitter Connectors, 3-Wire (pair)

$12.49
Allows for 2 turn signal lamps to be connected to each turn signal circuit. Increase turn signal visibility with two sets of lamps, such as: Integrated turn signals and auxiliary...
» View full product details
Share:
  • Fits 2001 2002 Yamaha YZF-R6.
  • Installs into OEM tail light housing (assembly required).
  • All electrical connectors and detailed instructions provided.
  • Made in the USA.
  • 1-Year Warranty & Satisfaction Guarantee.
  • DISCONTINUED - Legacy Information Shown.

Overview

That's right!  The best just got better!  We have taken all of our customers comments and combined them to improve our product.  The new Custom LED 2001-2002 R6 Integrated tail light has MORE LEDs and has a uniform distribution of red and yellow LEDs to uniformly light the stock lens.

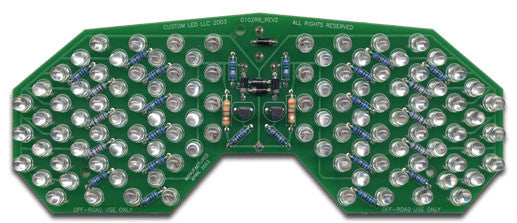

This is an integrated LED tail light retrofit of a stock 2001 or 2002 R6 tail light.  The internal workings of the factory LED tail light are removed and replaced with our Custom LED circuit board containing 60 Ultra Bright Red LEDs and 46 Ultra Bright Yellow LEDs.

The Red LEDs function as running and brake lights (dual intensity).  The yellow LEDs serve as the blinker!  That's right - you're totally integrated with this tail, no need for any other rear blinkers.  To prevent color mixing and to create a dramatic effect, the unit will flash between the Red and Yellow LEDs on the side you're turning - super bright, super colorful, super noticeable!

You can't even compare the brightness of this unit to the stock setup.  From the factory, you only get 20 LEDs in the stock tail compared to 106!  The LEDs you get with the Custom LED R6 Tail are the newest and brightest technology for LEDs.  The power draw increase is negligible due to a super efficient design on our part and the fact that LEDs are very efficient to begin with.

The image below shows how the tail looks while turning with the running lights on.  The tail functions exactly the same when the brakes are applied - except the RED LEDs become much brighter.  Please allow time for the image to load fully.

Note: the animated picture above is not of the new improved unit (0102R6_REV2) as you can see by the "square" layout of LEDs.  The new tails function the same except they are brighter and the whole entire lens is illuminated by the LEDs.

Features

  • 60 Ultra Bright Red LEDs for running and brake lights.
  • 46 Ultra Bright Yellow LEDs for turn signals.
  • Custom LED ColorChange Technology on-board.
  • Detailed step by step instructions with illustrations for a simple install.
  • Smart color matched wires matches motorcycle wires for easy wiring.
  • Only 2 wires to hook up outside of tail light housing.
  • All electrical connectors and hardware provided with kit.
  • 1-year Warranty & Satisfaction Guarantee!
  • MADE IN THE USA!
  • NOT DOT approved.

    Video

    We do not have any videos specifically for the 2001-2002 Yamaha YZF R6 Integrated LED Tail Light Retrofit Kit, but be sure to checkout Custom LED on YouTube for product videos.

    Installation

    The Custom LED 2001-2002 Yamaha YZF-R6 Integrated LED Tail Light retrofit kit must be installed into the OEM tail light.

    There may be additional accessories required to correct blinker problems on your motorcycle if you remove your OEM turn signals. These accessories can not be built into the tail light, and are generally optional and specific to different customers needs, so they are sold separately. Please see the recommended accessories, and read about the general issues and solutions in our Frequent Questions Page. If you have any questions, please do not hesitate to contact us.

    Installation of this product requires that you remove the OEM tail light from the motorcycle for the retrofit kit installation.  Please consult a qualified technician or your repair manual for the proper procedure to remove the OEM tail light.

    Once the OEM tail light is removed from the motorcycle, installation of the Custom LED 2001-2002 Yamaha YZF-R6 Integrated LED Tail Light is detailed in the instructions below.



    Custom LED 2001-2002 Yamaha YZF-R6 Integrated LED Tail Light - Installation Instructions

    Click icon to download.
    Adobe Acrobat Reader is required to view this file.
    If you are having problems viewing the file, please download the free software here.
