Ducati XDiavel Smart Turn Signal Integrator Kit

1   |

Custom LED

$149.99

Add items to the shopping cart to view shipping rates and methods.

Share:
  • Complete Plug & Play Turn Signal Integrator Kit for the Ducati XDiavel.
  • Effectively controls the OEM brake lights to function as running light, brake light and turn signals.
  • Built-in 10 pattern brake modulator.
  • Slim-line compact and water-resistant construction 4.2" x  1.4"  x  0.6".

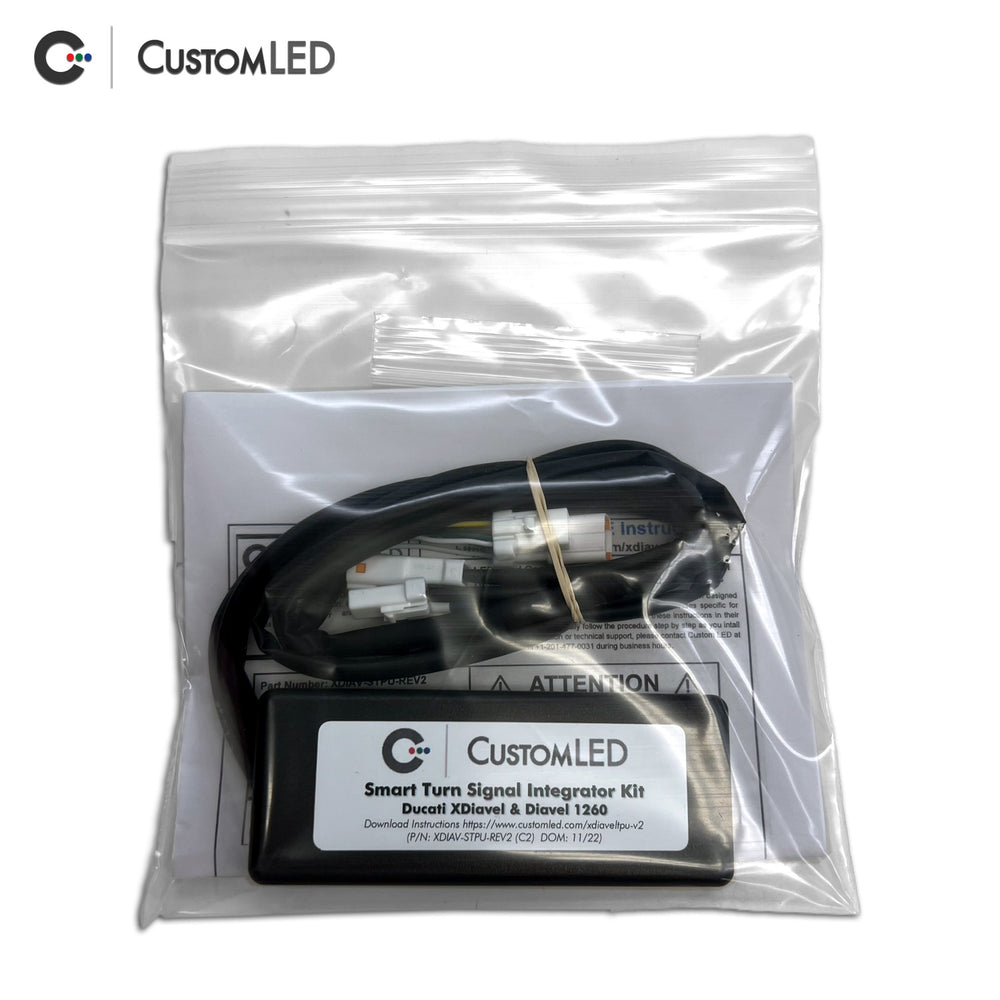

  • Comes with detailed installation instructions.
  • Plug & Play connectivity.
  • Full CANBus system compatibility.
  • Smart Triple Play is designed by Custom LED, built by Custom Dynamics.
  • US PATENT 8,588,997
  • 5-Year manufacturers warranty.

Overview

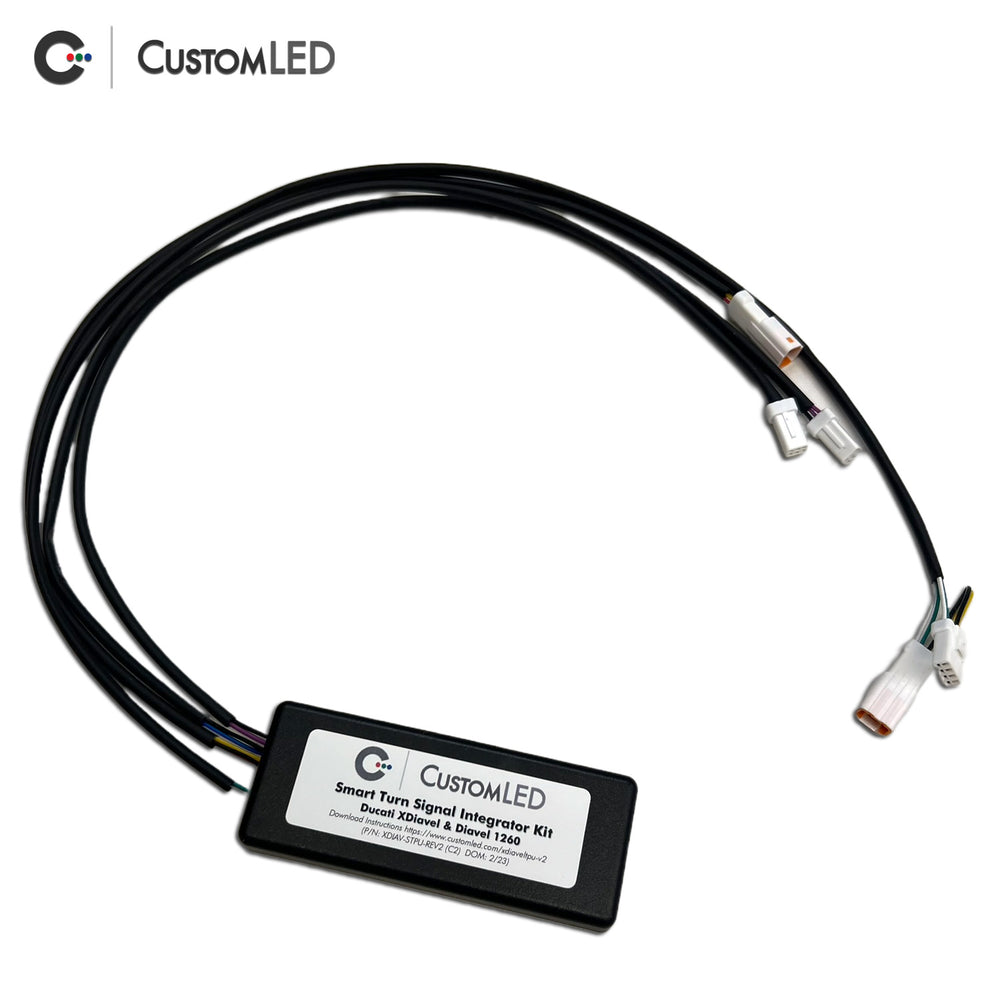

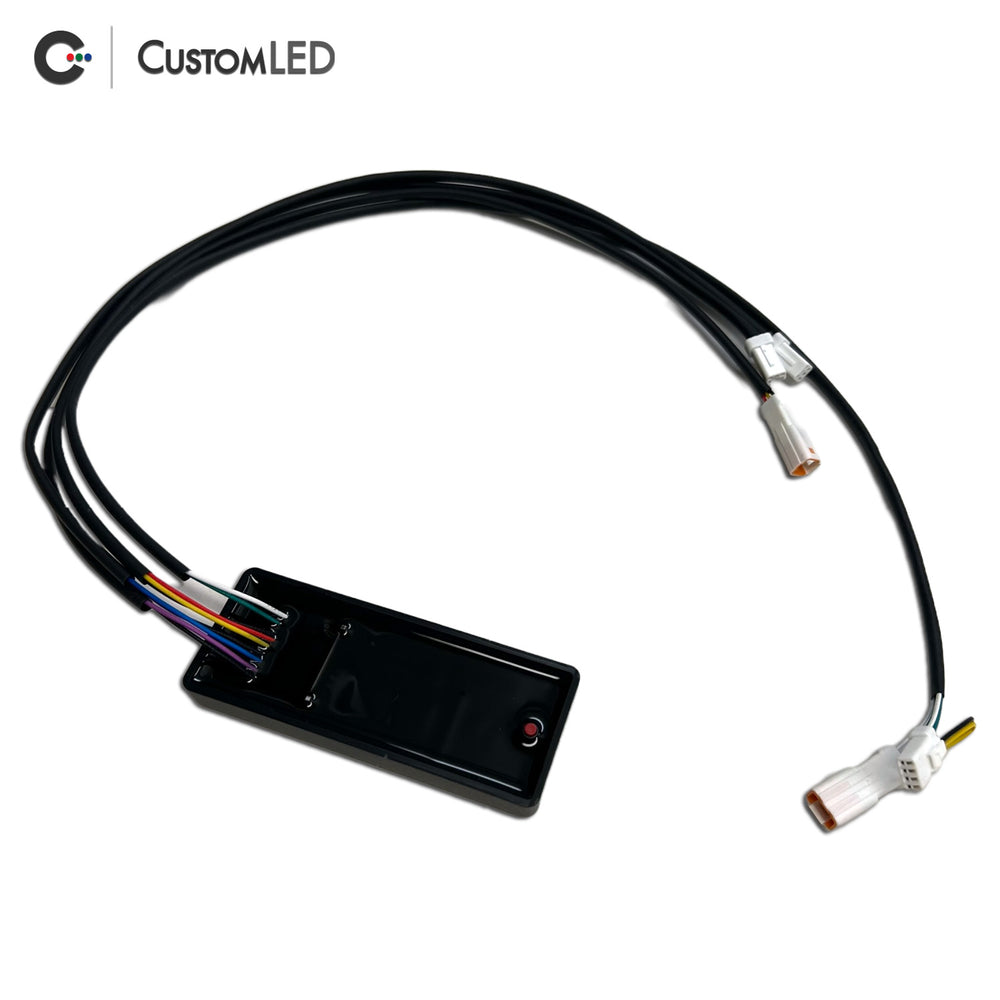

The XDiavel Smart Turn Signal Integrator Kit combines our patented Smart Triple Play module, and a CanBus compatible wiring harness specific for installation on the Ducati XDiavel. This complete Plug & Play kit converts the factory rear run/brake lights to operate as run, brake and turn signals in the most effective way possible.  The installation is fully reversible - no cutting or splicing at all.

Advanced features include: adjustable running light brightness, full-contrast blinker function (from full off to full bright), and a 10-pattern brake modulator that can be disabled if desired.  This type of Brake Light Modulation has been a huge success with our Brake Alert feature found in our Blaster-X line of integrated tail lights.

Features

Features and Specifications:
  • Designed to be fully compatible with the XDiavel specifically.
  • Allows existing factory brake lights to function as running light, brake light and turn signals.
  • Built-in 10 pattern brake modulator.
  • Works in conjunction with the factory turn signal lamps as well if desired.

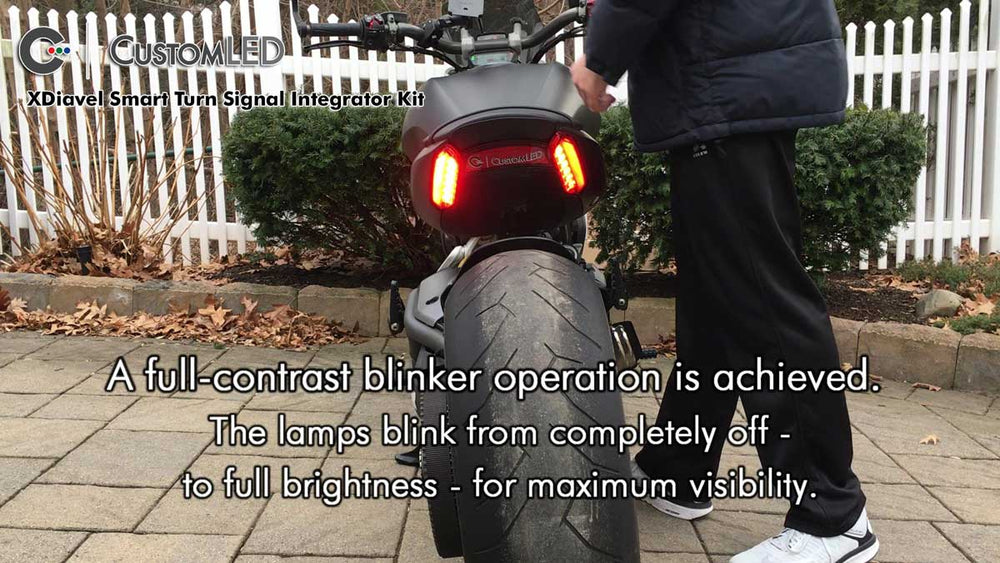

  • Full-Contrast blink function allows blinker lamps to blink from OFF to FULL BRIGHT for maximum visibility.
  • Supports ignition-off hazard function.
  • Short-Circuit, reverse-wire, and overload protection.

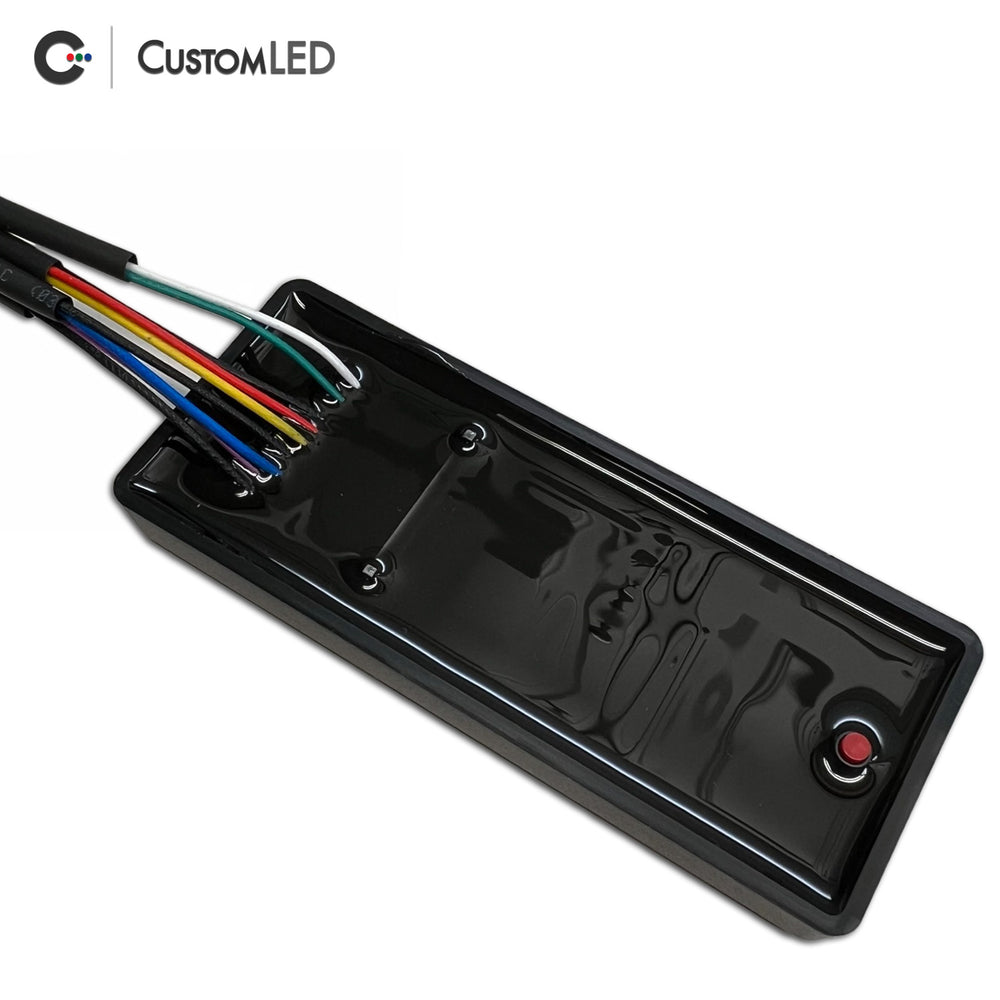

  • Slim-line compact and water-resistant construction 4.2" x  1.4"  x  0.6".
  • Comes with detailed instructions.
  • Plug & Play connectivity.
  • Full CANBus system compatibility.
  • Designed by Custom LED, built by Custom Dynamics.
  • US PATENT 8,588,997
  • 5-Year manufacturers warranty.
User Selectable Brake Modulator Patterns:
  • Pattern 0: Four Flashes then Solid  (Incandescent or LED)
  • Pattern 1: Four Flashes, Solid for 3 Seconds, Repeat (Incandescent or LED)
  • Pattern 2: Seven Flashes then Solid (Incandescent or LED)
  • Pattern 3: Seven Flashes, Solid for 3 Seconds, Repeat (Incandescent or LED)
  • Pattern 4: Quad Strobe, then Solid for 1 Second then Quad Strobe (LED Only)
  • Pattern 5: Quad Strobe, Solid for 1 Second, then Quad Strobe, Solid for 3 Seconds, Repeat (LED Only)
  • Pattern 6: Custom LED Blaster X Cycle for 3 seconds, then Solid (LED Only)
  • Pattern 7: Custom LED Blaster X Cycle, Repeat (LED Only)
  • Pattern 8: Max Strobe 4 Seconds, Solid (LED Only)
  • Pattern 9: Constant Max Strobe Pattern (LED Only)

Video

Installation

The Ducati XDiavel Smart Turn Signal Integrator Kit is installed on the motorcycle according to the detailed instructions below.



Installation Instructions

Click icon to download.
Adobe Acrobat Reader is required to view this file.
If you are having problems viewing the file, please download the free software here.
