Load Equalizer - 25 Watt (pair)
Add items to the shopping cart to view shipping rates and methods.
- Provides the same electrical load as a 20 to 30 Watt incandescent bulb.
- Fixes the fast-blink, no-blink and 4-way blink problems.

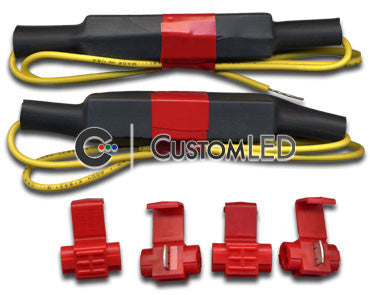

- Comes with non destructive quick-tap connectors.
- Comes with detailed installation instructions.
- Superior "Oversized" design prevents excessive heat buildup.
- Sold as pairs (two per order).
- Made in the USA.
- 1-Year Warranty & Satisfaction Guarantee.
- Ships same business day.
The Custom LED 25-Watt Load Equalizer (formerly known as our Stage II Load Equalizer) may be for you if your OEM turn signal lamps are 20 to 30 Watts each, and the following matches your situation after changing them:
- the blinkers work but blink faster than stock
- the blinkers do not blink at all - either they turn on and stay on solid or they don't even come on at all
- the left and right directional signals illuminate at the same time when activated (4-way blink problem)
Our 25-Watt Load Equalizer is basically a 25 Watt power sink that will make the OEM flasher relay think your stock turn signal bulbs are still there! This means, if you install our 25-Watt Load Equalizer in each blinker location that there was a 20 to 30 Watt OEM incandescent turn signal lamp - that has been replaced by an LED lamp - your blinkers will blink normally.
Our 25-Watt Load Equalizer is enclosed in a water tight housing that can be mounted anywhere on the bike. Our Load Equalizer is also perfect for automobile applications that have a dedicated turn signal circuit (not shared with the brake light for example. If shared, you will need our Heavy Duty 25-Watt Load Equalizers instead).
Our Load Equalizer couldn't be easier to install! The device is small and connects to the turn signal wires only. Your order will come with detailed instructions and simple tap connectors that do not require any cutting of the factory wiring!
Our Load Equalizers are over-designed and over-sized for excellent heat capacity. They will not get too hot under normal operation. You wont have any overheating problems with our products!
In general, you will need one Load Equalizer for each stock blinker bulb you removed or replaced with LEDs or smaller incandescent bulbs. You will need one Load Equalizer for each side, therefore orders are automatically placed in pairs.
BEFORE CHOOSING A LOAD EQUALIZER TO CORRECT YOUR BLINKER FLASH RATE, BE SURE TO SEE OUR ELECTRONIC LED FLASHER RELAY WITH PLUG AND PLAY CONVENIENCE! IT'S THE BETTER AND CHEAPER SOLUTION TO THE PROBLEM!
The Custom LED Load Equalizers come with detailed installation instructions as follows:
Click icon to download.
Adobe Acrobat Reader is required to view this file.
If you are having problems viewing the file, please download the free software here.
Instagram FeedTag us @Custom_LED_LLC in your Instagram Photos to see your photos here!
- load equalizers
- LED blinkers
- duty cycle
Perform exactly as required.
I purchased these to correct the flash rate when I converted to LED blinkers on my 2016 Honda Africa Twin, and they were just the ticket. The simple cut wire leads allowed for easy adaptation using OE connectors for install (personally don’t like using Scotch-locks). They function flawlessly, but as with any load equalizer they can heat up if used for any decent amount of time. Under normal conditions, it shouldn’t be an issue. The CRF1000L does have a unique characteristic, in that the front signals are only two-wire but still function as running lights during normal operation. The way this is accomplished is via a digital flasher relay providing a 28% PWM signal to the front blinkers normally, and switching to a 0%/100% alternating signal when the turn signal switch is activated. This causes the front two load equalizers to maintain some temperature (fluctuating, but +100 degrees F) at all times. We’ll see what sort of effect this constant 28% duty cycle will have on them long term, but thus far they’ve been just fine. Great product from Custom LEDs!
Awesome fix for a pesky problem
This equalizer is well made - neat and compact! Does the job perfectly - no more fast blink!
Works as it should!
It's a Load Equalizer, and that's what it does. There are many like it but this one is mine.
Nice product! Working perfectly!!!
Custom LED for 2013 Yamaha Raider
Great product, looks sooooo much better. I did buy the load equalizer. One for each turn signal. Works perfectly. Thank you easy install about2 hrs to install that and a side mount license plate
