2011-2018 Ducati Diavel Magic Strobes Brake Light Flasher

  |
P/N: 11DIAVEL_BM2_REV0

Custom LED

$209.99 $262.99

In Stock! Click Add to Cart to view available shipping methods and rates.

×
Blinker Genie - Pre-Wired for 2011-2013 Ducati Diavel SALE

Blinker Genie - Pre-Wired for 2011-2013 Ducati Diavel

$89.99 $112.99
Allows for Run AND Turn operation of the OEM front blinker lamps on the 2011-2013 Ducati Diavel (2014-2018 compatibility unknown). Complete plug-and-play harness with OEM connectors - no cutting/splicing and fully reversible. Intelligent...
» View full product details
Share:
  • Complete Plug & Play Intelligent Brake Light Flasher system for the 2011-2018 Ducati Diavel (USA Spec Only - with all-red tail lights).
  • Microprocessor based system intelligently controls the OEM brake lights to function as brake light and turn signals with a 10 pattern brake modulator applied when braking only.
  • This kit utilizes our Patented Magic Strobes Brake Light Flasher, and a custom harness specific for this motorcycle.
  • Slim-line compact and water-resistant construction 4.2" x  1.4"  x  0.6".
  • Comes with detailed installation instructions.
  • Plug & Play connectivity.
  • Full CANBus system compatibility.
  • Magic Strobes Brake Light Flasher is designed by Custom LED, built by Custom Dynamics.
  • US PATENT 9,566,902 B1
  • 5-Year manufacturers warranty.
  • Ships same business day.

Overview

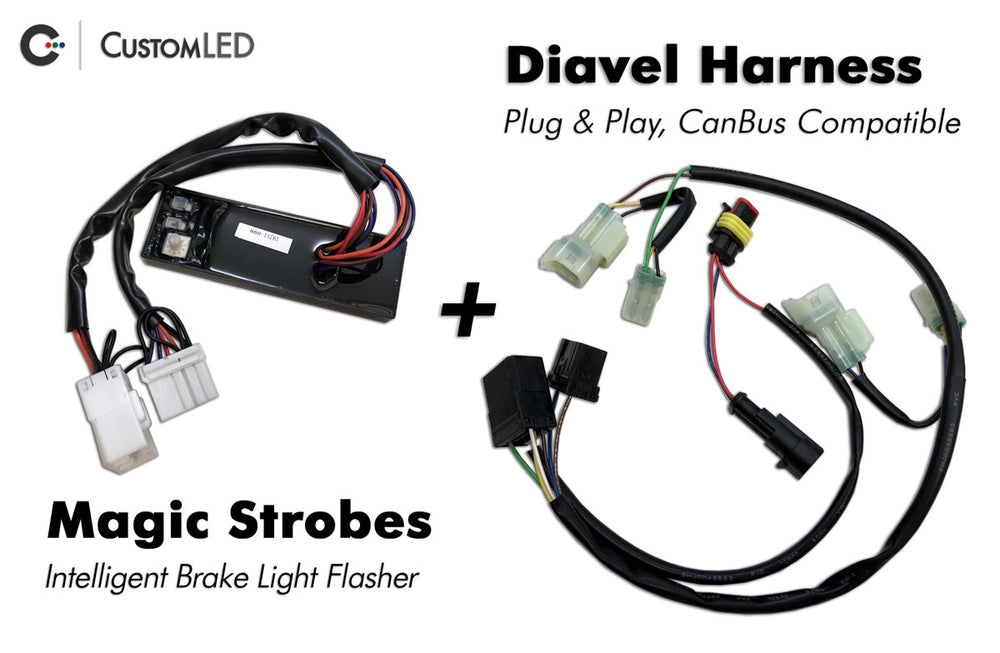

The 2011-2018 Ducati Diavel Magic Strobes Brake Light Flasher combines our patented Magic Strobes Brake Light Flasher module, and a CanBus compatible wiring harness specific for installation on the 2011-2018 Ducati Diavel (USA Spec Only - with all-red tail lights). This complete Plug & Play kit intelligently controls the factory equipment rear run/brake/turn lights to operate with a 10-pattern brake modulator in the most effective way possible.  The installation is fully reversible - no cutting or splicing at all.

Advanced features include: 10 user-selectable brake modulations which automatically display upon braking, and command the attention of following motorists.  Fully integrated operational logic control cancels the brake modulation when a turn signal is activated to prevent confusion for following motorists.

This type of Brake Light Modulation has been a huge success with our Brake Alert feature found in our Blaster-X line of integrated tail lights.

Features

Features and Specifications:
  • Designed to be fully compatible with the 2011-2018 Diavel specifically (USA Spec Only - with all-red tail lights).
  • Utilizes existing factory brake lights which function as running light, brake light and turn signals.
  • Built-in 10 pattern brake modulator.
  • Supports ignition-off hazard function.
  • Short-Circuit, reverse-wire, and overload protection.
  • Slim-line compact and water-resistant construction 4.2" x  1.4"  x  0.6".
  • Comes with detailed instructions.
  • Plug & Play connectivity.
  • Full CANBus system compatibility.
  • Designed by Custom LED, built by Custom Dynamics.
  • US PATENT 9,566,902 B1
  • 5-Year manufacturers warranty.
User Selectable Brake Modulator Patterns:
  • Pattern 0: Four Flashes then Solid  (Incandescent or LED)
  • Pattern 1: Four Flashes, Solid for 3 Seconds, Repeat (Incandescent or LED)
  • Pattern 2: Seven Flashes then Solid (Incandescent or LED)
  • Pattern 3: Seven Flashes, Solid for 3 Seconds, Repeat (Incandescent or LED)
  • Pattern 4: Quad Strobe, then Solid for 1 Second then Quad Strobe (LED Only)
  • Pattern 5: Quad Strobe, Solid for 1 Second, then Quad Strobe, Solid for 3 Seconds, Repeat (LED Only)
  • Pattern 6: Custom LED Blaster X Cycle for 3 seconds, then Solid (LED Only)
  • Pattern 7: Custom LED Blaster X Cycle, Repeat (LED Only)
  • Pattern 8: Max Strobe 4 Seconds, Solid (LED Only)
  • Pattern 9: Constant Max Strobe Pattern (LED Only)

Video

We have a large collection of all Custom LED product videos on the Custom LED YouTube Channel.

The videos in this playlist below are a collection of user-submitted and original videos related to the Diavel Magic Strobes Brake Light Flasher.

Installation

The 2011-2018 Ducati Diavel Magic Strobes Brake Light Flasher kit is installed on the motorcycle according to the detailed instructions below (USA Spec Only - with all-red tail lights).



Installation Instructions

Click icon to download.
Adobe Acrobat Reader is required to view this file.
If you are having problems viewing the file, please download the free software here.
