ELFR-1-QD Electronic LED Flasher Relay with Quick Disconnects

36   |

Custom LED

$20.98 $24.99

Add items to the shopping cart to view shipping rates and methods.

Share:
  • Maintains OEM Blinker flash rate for a wide range of LED and non-LED blinkers.
  • Plug and play connectivity with OEM connector (see compatibility list and/or check OEM flasher relay connector first).
  • Recommended accessory for all Custom LED Integrated LED Tail Lights.
  • 1-Year Warranty & Satisfaction Guarantee.
  • Ships same business day.

Overview

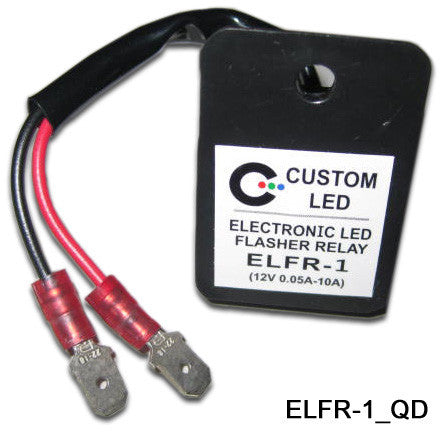

The ELFR-1-QD is the same part as our ELFR-1 LED flasher relay, however it has the quick-disconnect connectors installed on the wires as shown in the image.  This connector will fit some OEM flasher relay sockets.  Check the compatibility list for bikes that are known to have compatible OEM flasher relay sockets.

For other motorcycles not on this compatibility list, please click here.

Please read all of the product information in the Overview on our ELFR-1 page, for more information about this product.

Specifications

  • Minimum Rated Current: 0.05A
  • Maximum Rated Current: 10A
  • Rated Voltage: 12VDC
  • Flash Rate: Constant
  • Size: 1.2" x 1.77" x 0.74"

Compatibility List

ELFR-1-QD FLASHER RELAY COMPATIBILITY LIST:

NOTE: USA SPEC SHOWN, FOR NON-US SPEC VERIFY INDIVIDUALLY

This list will determine if your motorcycle harness is known to have a relay socket that is compatible with the quick-disconnects on our ELFR-1-QD Flasher Relay!  If your bike is not on this list, please check the connector on your OEM flasher relay before ordering this part.  Our standard ELFR-1 unit is plug-and-play compatible with many motorcycles.

Note: If there are no specific connection instructions below for your motorcycle, you must follow the "All Applications" hard-wire installation instructions to identify the wires in your motorcycle relay socket with a test-light or volt meter before installing this product.  Improperly installing the ELFR-1 will destroy it.

All Applications:

If your existing flasher relay is a two wire flasher relay (or a three wire with a ground wire), and you have access to it, you can replace it with our flasher relay.

Identify and connect the wires leading to the OEM flasher relay as follows:

  • Red wire on ELFR-1 to power source (ignition switched +12v)
  • Black wire on ELFR-1 to load (blinker lamps/ blinker switch)

BMW:

00-03 F650GS

Ducati:

996 - hard wire installation as follows when replacing OEM relay with our Electronic LED Flasher Relay:

  • Motorcycle Light Blue (LB) gets connected to the ELFR-1 Red wire
  • Motorcycle Pink (P) gets connected to the ELFR-1 Black wire

Honda:

2014 Grom hard wire installation as follows when replacing the OEM relay with our Electronic LED Flasher Relay:

  • Motorcycle Black to ELFR-1 Red wire
  • Motorcycle Gray to ELFR-1 Black wire

2003-2006 CBR 600RR hard wire installation as follows when replacing the OEM relay with our Electronic LED Flasher Relay:


CBR 125

  • Motorcycle Brown wire to ELFR-1 Red wire
  • Motorcycle Blue wire to ELFR-1 Black wire
  • See picture of installation here

Kawasaki:

08-11 Ninja 250R hard wire installation as follows when replacing the OEM relay with our Electronic LED Flasher Relay:

  • Motorcycle Orange/Green stripe wire to the ELFR-1 Red wire
  • Motorcycle Orange wire to the ELFR-1 Black wire

Suzuki:

All late model GSXR's with two-wire replaceable flasher relays are also compatible, but require a hard-wire installation as follows:

  • Motorcycle Light Blue (Lb) gets connected to the ELFR-1 Red wire
  • Motorcycle Orange/Green stripe (O/G), or Dark Green (Dg), gets connected to the ELFR-1 Black wire.

Yamaha:

V-Max (some models < 2009); V-Star; Roadstar Line (some models < 2015, Yamaha Part 1D7-83350-00-00): Raider, Warrior, Stryker, Stratonliner, Roadliner.

Hard Wire installation is as follows when replacing the OEM flasher relay with our Electronic LED Flasher Relay:

  • Motorcycle Brown wire to ELFR-1 Red wire
  • Motorcycle Brown/white stripe wire to ELFR-1 Black wire
  • view picture here

If you find that your motorcycles flasher relay is not two-wire and/or replaceable, you may use the Custom LED Universal Load Equalizers along with your stock flasher relay instead.

Installation

The Custom LED ELFR-1-QD Electronic LED Flasher Relay comes with detailed installation instructions.

Installation of this product requires that you identify and remove the OEM flasher relay motorcycle.  If you are unfamiliar with the location of your OEM flasher relay, or electronics in general, please consult a qualified technician or your repair manual for additional information.

Installation of the ELFR-1-QD is as follows:

Installation Instructions ELFR-1-QD Electronic LED Flasher Relay

Click icon to download.
Adobe Acrobat Reader is required to view this file.
If you are having problems viewing the file, please download the free software here.

NOTE: In some rare instances, when there are NO incandescent loads on the blinker system (LEDs front and rear), additional actions or components may also be required to prevent a wide range of blinker problems.  These problems are all associated with a lack of resistive load on an all-LED blinker system that was designed for incandescent lamps.  Problems such as, but not limited to: the 4-way blink problem (both sides blinking at the same time), the no-blink problem, and Integrated LED Tail Lights staying in "blinker mode" due to non-zero blinker voltages.  Rest assured that Custom LED has the knowledge, experience, and expertise to tackle any issues that may arise on your motorcycle.

Remember, the Flasher Relay ONLY controls the speed of the blinkers on the motorcycle, and any other problems that arise are independent of the flasher relay, and are resolved separately as well.

Customer Reviews

Based on 36 reviews
5 Star
94%
34
4 Star
6%
2
3 Star
0%
0
2 Star
0%
0
1 Star
0%
0
Customer Photos
Write a Review Ask a Question
  • Reviews (36)
  • Questions (1)

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!
SP
04/18/2017
Stephen P.
United States

Repeat buyer and it always works

Used this relay on 2 different Suzukis and it always corrected the flash rate. Those OEM looking relays on eBay that promise to fix the flash rate never worked, so don't waste you're time and money. Just buy this and be done. It's a cleanly designed part that's easy to secure.

GC
03/30/2017
Gary C.
United States

LED Flasher Relay, Diodes and 194 LED Bulbs

I tired a product from another company that was stated to work for my application and did not. Custom LED's products work, and their service exceeded my expectations. Top notch help and product's that work. Only the best here. Thank you! Gary

RB
03/12/2017
Robert B.
United States

LED flasher relay

The relay works great for stabalizing the blink rate on turn signals. The website had the info I needed to install this relay on my 2012 Yamaha Raider. Very helpful.

TC
03/10/2017
Tim C.
United States

Works as advertised.

Without a frame of reference to compare, the product did work and perform as expected. Installation was a little generic for my product, but the relay is a generic product for many products. Seems like there could be additional instructions to say, for my specific case, where to find my relay in which to replace. Google to the rescue.

03/10/2017

Custom LED

Hi Tim, that is correct.  The ELFR-1 and ELFR-1 QD do apply to hundreds of motorcycles.  Each having different wire color conventions and mounting locations for their flasher relays.  It would be very tedious to compile a procedure for each and every motorcycle.  As you stated, the internet is a great place for this type of information.  Especially motorcycle forums where you can see DIY installation write-ups by fellow riders who own the same exact motorcycle as you.

DW
03/09/2017
Dwain W.
United States

Solved my Flasher Problem

I installed new LED flashers on my Honda CB 250. My old flasher would not work with the new lights. I purchase a replacement flasher relay from a local parts store that advertised would work with LED lights but it didn't. I purchased the ELFR-1-QD Electronic LED Flasher and it worked. The order process was simple. The pictures on the website were helpful getting the right item. The delivery was quick. I am very happy
