Hyper-X High-Power LED Modules

2   |

Custom LED

$7.49 $9.99

Add items to the shopping cart to view shipping rates and methods.

Share:
  • 1 Watt LED, mounted on heat-sinking aluminum PCB.
  • Operates with dual-intensity for run/brake or run/turn applications.
  • Requires Hyper-X LED Driver.
  • Top of class intensity for high-power LEDs.
  • 1-Year Warranty & Satisfaction Guarantee.
  • Ships same business day.

Overview

The Hyper-X LED Module is a High-Power 1 Watt LED module that produces an incredible amount of light.  This module is designed to operate in conjunction with the Hyper-X LED Driver to provide dual-intensity (3-wire) operation of the LED.

They are currently available in: Red, Amber, White and Blue for a variety of applications.

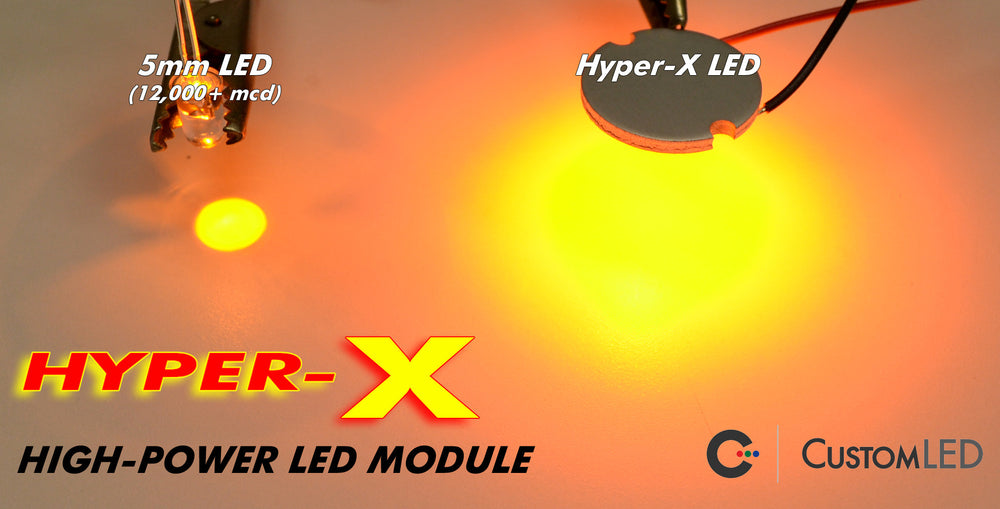

Measuring only 20mm (0.78") in diameter, its about the size of a Nickel, and puts out as much light as a 10W bulb, while only consuming 1W of power.  This product is extremely versatile for custom applications where high-intensities or small sizes are required.  Retrofitting existing housings and enclosures with this LED module is as simple as gluing it in place.  For more secure installations, the two notches can be used to center mounting screws.

Up to three red or amber Hyper-X LED Modules can be run off of a single Hyper-X LED Driver, and up to two white or blue Hyper-X LED Modules can be run off of a single Hyper-X LED Driver!  The Custom LED Hyper-X LED Drivers come with detailed wiring instructions.

The modules are not waterproof and are intended to be mounted inside of a suitable enclosure.

Specifications

  • LED Wattage class: 1 Watt
  • Size: 0.78" Diameter, 0.15" Thick (with wires)
  • Current draw: <350mA (bright)
  • Waterproof: NO
  • Viewing Angle: 120 Degrees
  • Blue Intensity: 12~20 Lumens, 465~475 nm
  • Red Intensity: 45~70 Lumens, 624 nm
  • White Intensity: 114~138 Lumens, 6000K
  • Amber Intensity: 45~70 Lumens, 598 nm

Installation

Hyper-X High-Power 1 Watt LED Module Installation Instructions | Custom LED

Installation of the Hyper-X LED Driver is as follows:

Click icon to download.
Adobe Acrobat Reader is required to view this file.
If you are having problems viewing the file, please download the free software here.

Customer Reviews

Based on 2 reviews
5 Star
100%
4 Star
0%
3 Star
0%
2 Star
0%
1 Star
0%
Write a Review Ask a Question
  • Reviews (2)
  • Questions (0)

Thank you for submitting a review!

Your input is very much appreciated. Share them with your friends so they can enjoy it too!
JA
04/13/2016
JERRY Adkins
United States

Great service ,the very best in LED technology .

A super bright tiny module that works with the ELFR-P controller to operate various light modulations on my Yamaha Raider "S" to create dazzling strobes of intensity that are spectacular at night. Great product. Programmable light sequences get your bike out front and ahead of the artistic curve with brilliant LED's .

E
01/07/2013
Ed
san diego, ca

I inserted the red hyper-x leds into my motorcycle's trunk behind some red-tinte

I inserted the red hyper-x leds into my motorcycle's trunk behind some red-tinted translucent plastic covers, and the leds are incredibly bright, being really bright and noticeable even in direct sunlight, which very few leds are. (the stock taillight is much dimmer.) If viewed without a tinted cover, the leds are so bright that they actually appear more white than red.
