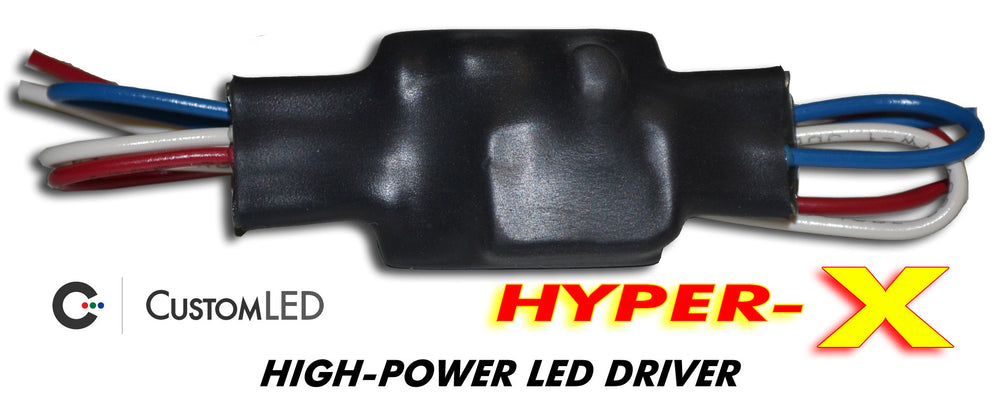

Hyper-X High-Power LED Driver

  |
P/N: HP_DRV1_REV0

Custom LED

$19.99 $29.99

In Stock! Click Add to Cart to view available shipping methods and rates.

×
Hyper-X High-Power LED Modules for Custom LED Lighting on Motorcycles | Custom LED SALE

Hyper-X High-Power LED Modules

$9.99 $14.99
1 Watt LED, mounted on heat-sinking aluminum PCB. Operates with dual-intensity for run/brake or run/turn applications. Requires Hyper-X LED Driver. Top of class intensity for high-power LEDs. 1-Year Warranty & Satisfaction Guarantee. Ships...
» View full product details
Share:
    • Solid-State, Current Regulating, Dual Output driver for Hyper-X LED Modules.
    • Operates with dual-intensity for run/brake or run/turn applications.
    • One Driver can power 3 red or yellow LED modules, OR 2 white or blue modules (see installation).
    • Requires Hyper-X LED Modules.
    • Made in the USA.
    • 1-Year Warranty & Satisfaction Guarantee.
    • Ships same business day.

          Overview

          The Hyper-X LED Driver is designed to power the Hyper-X LED Modules with dual-intensity and current regulation.  The driver has two inputs (dim/bright), and one output to connect to the Hyper-X LED Module(s).

          One single Driver will power up to 3 red or amber LED modules, and 2 white or blue LED modules when wired as per the provided instructions.

          Specifications

            • Input Voltage: 24vdc max, min depends on number of LEDs driven.
            • Size: Approximately 2" x 0.4" x 0.81"
            • Current draw: <350mA (bright)
            • Waterproof: YES
            • Wire leads are approximately 8" long.

                  Installation

                  Hyper-X High-Power 1 Watt LED Module Installation Instructions | Custom LED

                  Installation of the Hyper-X LED Driver is as follows:

                  Click icon to download.
                  Adobe Acrobat Reader is required to view this file.
                  If you are having problems viewing the file, please download the free software here.
